Direct Execution of Remote Program

The case of direct activation of remote executable program

Setting environment for remote nodes

APIs for direct activation of remote program

Program execution

The limitation in case of direct activation of remote executable program

The case of direct activation of remote executable program

Usually in OmniRPC, the client program executes a remote executable program via the agent. Here are some advantages.

• By registering to the registry, it is possible to activate remote executable modules on the remote host without knowing its path. Furthermore, in the case of the same module's name, it is possible to allocate the job to the appropriate remote host.
• When the remote host is a cluster, it is possible to allocate jobs to the cluster node host.

In this explanation, without the agent, we introduce a method to execute directly the remote executable module and to call RPCs. If there are remote executable programs for which you know the path in a certain remote host, you can omit registering remote executable programs, and so on. The advantages as are listed below.

• Without describing a communication protocol, programs call function by using OmniRPC protocol.
• By activating using Globus and ssh, the function of port forwarding is available in authentication.

Setting environment for remote nodes.

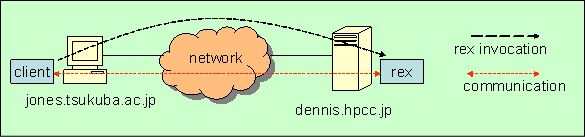

We assume this environment, as an example.

1. Client host is jones.tsukuba.ac.jp
2. Remote host is dennis.hpcc.jp
3. Set calc_sin.rex, which we introduced already as an example program, to "/usr/local/tmp/" .
4. Globus gate keeper is running on dennis.hpcc.jp, and it is possible to execute programs with GRAM.

If you use this function, it executes rex directly without the agent.

API for direct execution of remote program

Because, we don't use the agent for direct execution, initialization of the library is taken by OmniRpcExecInit() API.

APIs which activate remote executable programs on the remote host, are like APIs which use OmniRpcHandle. OmniRpcExecOnHost() API enables the execution of a remote executable program, which is specified by its path, on the specified remote host, and it returns OmniRpcExecHandle, which presents its connection. By using OmniRpcExecCall it is possible to call a function which is inside a module.

We show this example below.

#include <OmniRpc.h>
#include <stdio.h>

int main(int argc,char *argv[]){
   double r;
   OmniRpcExecHandle handle;

   OmniRpcExecInit(&argc,&argv);
   handle = OmniRpcExecOnHost("dennis.hpcc.jp","/usr/local/tmp/calc_sin.rex");

   OmniRpcExecCall(handle,"calc_sin",10,&r);
   printf("sin(10)=%g\n",r);

   OmniRpcExecTerminate(handle);

   OmniRpcExecFinalize();
   exit(0);
}

OmniRpcExecTerminate API enables the termination of the remote executable program which responds to the handle. Finally, you should use OmniExecFinalize() at the end of the program.

Program execution

You should specify the path of an executable program to activate the remote executable program. For example, the case of an execution using Globus is as follows.

 $% a.out --globus  args

In the case of SSH activation, you specify "--ssh."; if don't specify this, rsh is used to activate.

The limitation of direct activation of remote executable programs.

At this time, there are some limitations with this method.

• No support for a multi-thread environment (no thread-safe)
• No support for asynchronous calls.
• No support for activating with multiple methods of activation.

We hope to improve these issues in the future.
